Space Weather Observations, Alerts, and Forecast

Current Space Weather Overview

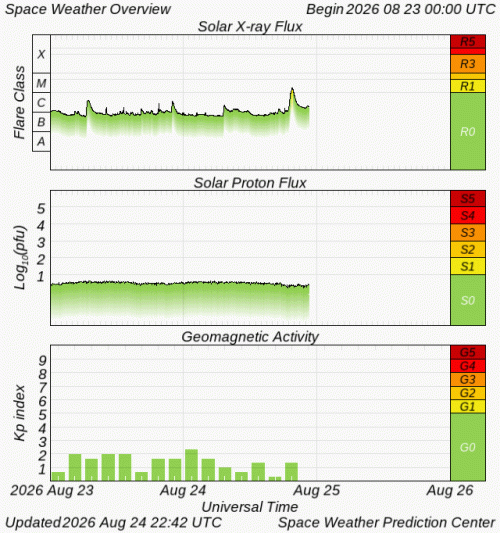

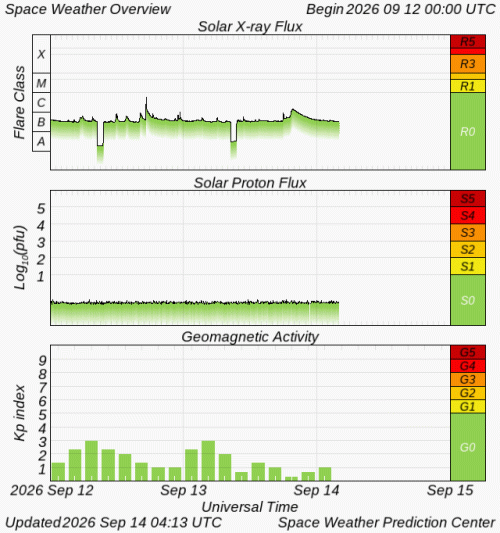

Graphs Showing Solar X-Ray & Solar Proton Flux

3-day Solar-Geophysical Forecast

Product: 3-Day Forecast - Issued: 2024 Dec 06 0030 UTC
Prepared by the U.S. Dept. of Commerce, NOAA, Space Weather Prediction Center.

Geomagnetic Activity Observation and Forecast

The greatest observed 3 hr Kp over the past 24 hours was 2 (below NOAA Scale levels). The greatest expected 3 hr Kp for Dec 06-Dec 08 2024 is 3.00 (below NOAA Scale levels).

NOAA Kp index breakdown Dec 06-Dec 08 2024
Dec 06Dec 07Dec 08
00-03UT1.002.672.00
03-06UT1.672.002.00
06-09UT2.001.672.33
09-12UT1.003.002.33
12-15UT2.332.002.33
15-18UT3.002.332.67
18-21UT2.331.672.00
21-00UT2.671.001.33

Rationale: No G1 (Minor) or greater geomagnetic storms are expected. No significant transient or recurrent solar wind features are forecast.

Solar Radiation Activity Observation and Forecast

Solar radiation, as observed by NOAA GOES-18 over the past 24 hours, was below S-scale storm level thresholds.

Solar Radiation Storm Forecast for Dec 06-Dec 08 2024
Dec 06Dec 07Dec 08
S1 or greater5%5%5%

Rationale: No S1 (Minor) or greater solar radiation storms are expected. No significant active region activity favorable for radiation storm production is forecast.

Radio Blackout Activity and Forecast

Radio blackouts reaching the R1 levels were observed over the past 24 hours. The largest was at Dec 05 2024 1040 UTC.

Radio Blackout Forecast for Dec 06-Dec 08 2024
Dec 06Dec 07Dec 08
R1-R230%35%35%
R3 or greater5%5%5%

Rationale: There is a chance for R1-R2 (Minor-Moderate) radio blackouts over 06-08 Dec.


Real Time Images of the Sun


SOHO EIT 171
Click for time-lapse image of the sun
SOHO EIT 195
SOHO EIT 195 image of the sun
SOHO EIT 284
SOHO EIT 284 image of the sun
SOHO EIT 304
SOHO EIT 304 image of the sun

SDO/HMI Continuum
SDO/HMI Continuum Image of the Sun
SDO/HMI Magnetogram
Latest SDO/HMI Magnetogram image of the Sun
LASCO C2
Latest LASCO C2 image of the Sun
LASCO C3
Latest LASCO C3 image of the Sun

The sun is constantly monitored for sun spots and coronal mass ejections. EIT (Extreme ultraviolet Imaging Telescope) images the solar atmosphere at several wavelengths, and therefore, shows solar material at different temperatures. In the images taken at 304 Angstrom the bright material is at 60,000 to 80,000 degrees Kelvin. In those taken at 171 Angstrom, at 1 million degrees. 195 Angstrom images correspond to about 1.5 million Kelvin, 284 Angstrom to 2 million degrees. The hotter the temperature, the higher you look in the solar atmosphere.


Solar Wind


Real-Time Solar Wind

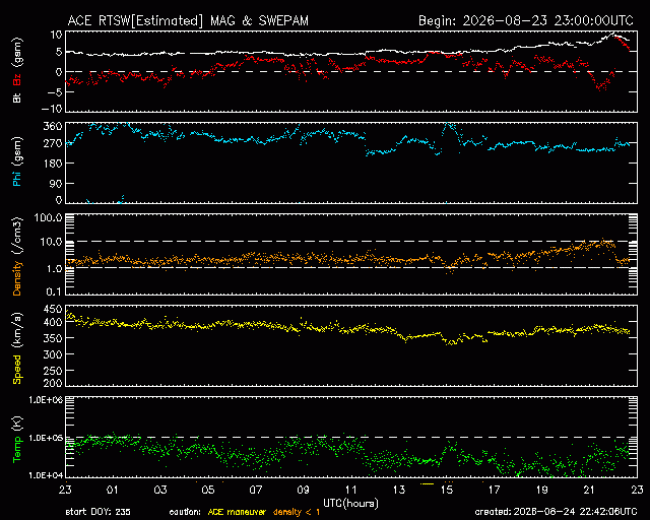

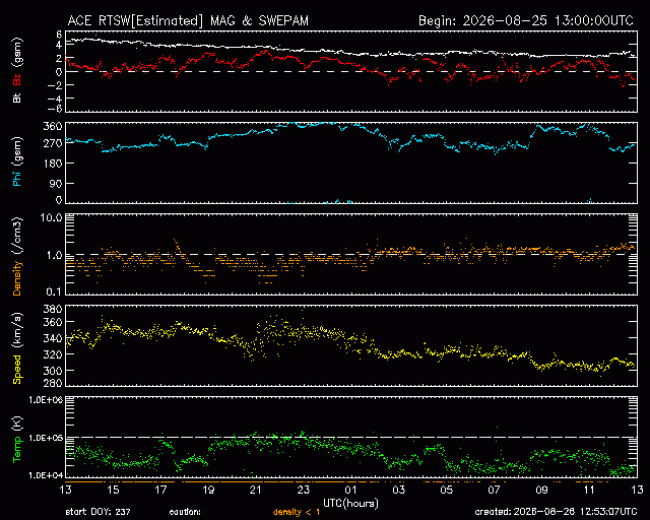

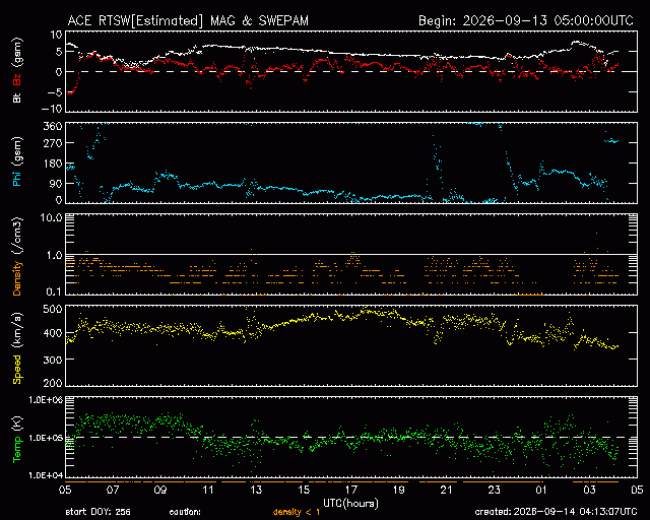

Graph showing Real-Time Solar Wind
Real-Time Solar Wind data broadcast from NASA's ACE satellite.

WSA-Enlil Solar Wind Prediction
Move your cursor over the timeline to 'scrub' through the forecast.

WSA-Enlil is a large-scale, physics-based prediction model of the heliosphere, used by the Space Weather Forecast Office to provide 1-4 day advance warning of solar wind structures and Earth-directed coronal mass ejections (CMEs) that cause geomagnetic storms. Solar disturbances have long been known to disrupt communications, wreak havoc with geomagnetic systems, and to pose dangers for satellite operations.


Solar Cycle




The Solar Cycle is observed by counting the frequency and placement of sunspots visible on the Sun. The forecast comes from the Solar Cycle Prediction Panel representing NOAA, NASA and the International Space Environmental Services (ISES). The Prediction Panel has predicted Cycle 25 to reach a maximum of 115 occurring in July, 2025. The solar radio flux at 10.7 cm (2800 MHz) is an excellent indicator of solar activity. Often called the F10.7 index, it is one of the longest running records of solar activity. The F10.7 radio emissions originates high in the chromosphere and low in the corona of the solar atmosphere. The F10.7 correlates well with the sunspot number as well as a number of UltraViolet (UV) and visible solar irradiance records.


Auroral Activity Forecast


Tonight's Aurora Viewline Forecast

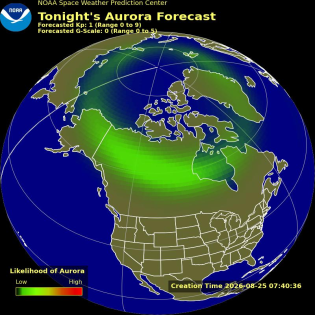

Auroral Viewline Forecast - Tonight
Tomorrow's Aurora Viewline Forecast

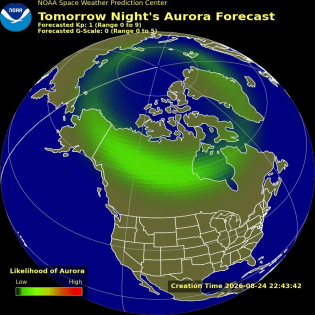

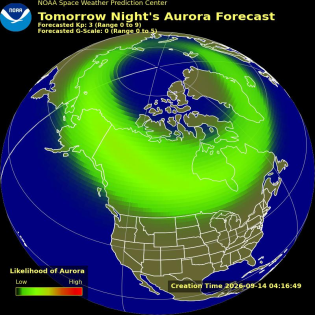

Auroral Viewline Forecast - Tomorrow

Instruments on board the NOAA Polar-orbiting Operational Environmental Satellite (POES) continually monitor the power flux carried by the protons and electrons that produce aurora in the atmosphere. SWPC has developed a technique that uses the power flux observations obtained during a single pass of the satellite over a polar region (which takes about 25 minutes) to estimate the total power deposited in an entire polar region by these auroral particles. The power input estimate is converted to an auroral activity index that ranges from 1 to 10.


Radio Communications Impact

D-Region Absorption

D-Region Absorption Prediction
Latest D-Region Absorption Prediction Model

The D-Region Absorption Product addresses the operational impact of the solar X-ray flux and SEP events on HF radio communication. Long-range communications using high frequency (HF) radio waves (3 - 30 MHz) depend on reflection of the signals in the ionosphere. Radio waves are typically reflected near the peak of the F2 layer (~300 km altitude), but along the path to the F2 peak and back the radio wave signal suffers attenuation due to absorption by the intervening ionosphere. The D-Region Absorption Prediction model is used as guidance to understand the HF radio degradation and blackouts this can cause.


VHF and HF Band Conditions
